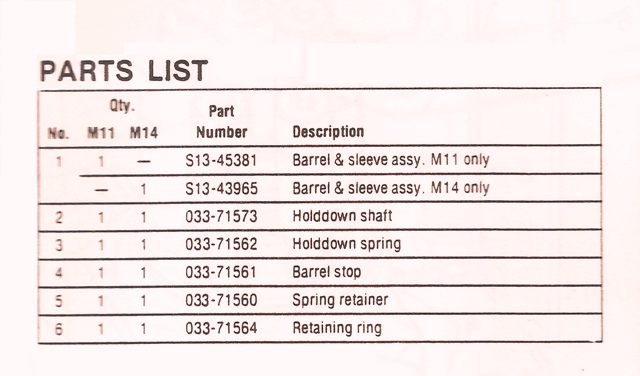

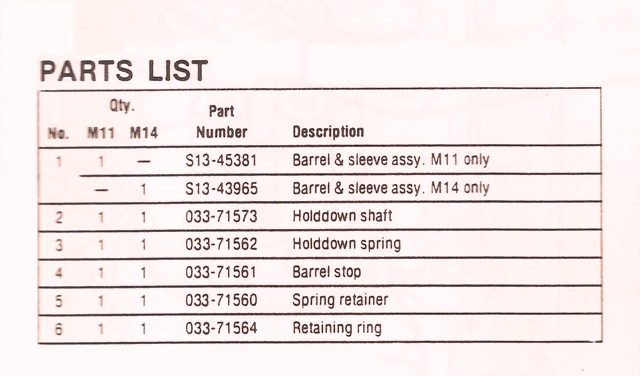

Denison Goldcup Series M11- 14 Barrel & Holddown Shaft Assembly

Put the barrel (1) that has the bores facing down and make sure the surface is free of debris. Put in the holdddown spring (3) in the barrel counterbore.
Put in the spring retainer (5) into the counter bore and seat next to the spring.
The retaining ring (6) goes in next to the barrel counter bore groove. Making sure the retaining ring in right in the groove.
Next you will need to put the barrel stop (4) over the holddown shaft (2). Now turn the barrel on its side and put in the shaft and barrel stop thru the barrel spline and holddown spring.
