Denison Barrel and Stroking Assy to Mounting Flange

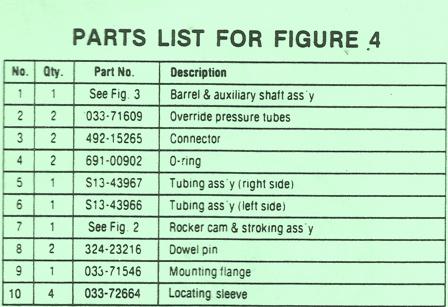

To start the assembly you need to put the straight thread connectors and rings into the threaded holes in the cradle.
Then put the right and left hand pressure feed tubes to the connectors and make sure they are tightened.
Place the mounting flange in a way that they facing up over the large opening, then put in the two dowel pins in the cradle mounting surface along the four sleeves in the outer edge of the flange.
Install the rocker cams and the cradle assembly of the dowel pins in the flange.
Since the cam and cradle are already in there, put the flange on the side and put in tow 3/8″-16 x 2 screws thru the seal retainer into the cradle. The screws are needed to hold down rocker cam assy in place (they will be removed later).
Now put back the flange to an upright position and tilt the rocker cam to either way in the cradle.
Now position the barrel and auxiliary shaft assy. directly over the pistons. Start with the uppermost piston (do one at a time) into the barrel bores. Put the cam back at level position in the cradle.
